Cryogenic NAND Etchers Market

What is the Cryogenic NAND Etchers Market forecast to be worth by 2036?

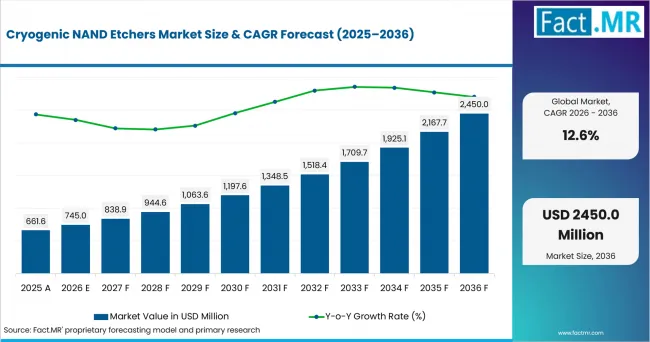

USD 745.0 million in 2026 to USD 2,450.0 million by 2036, at a 12.6% CAGR.

• The Cryogenic NAND Etchers Market crossed a valuation of USD 661.6 million in 2025, supported by demand from NAND manufacturers serving Channel hole etch workflows that require etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation.
• Demand is projected to increase from USD 745.0 million in 2026 to USD 2,450.0 million by 2036.
• The market is forecast to record a 12.6% CAGR from 2026 to 2036 as Why cryo, tel's breakthrough (peer-presented, vlsi 2023) and lam's platform positioning remain central purchase reasons.

What are the defining numbers behind Cryogenic NAND Etchers Market growth?

USD 1,705.0 million absolute opportunity is expected by 2036.

• Demand Drivers in the Market
  • Why cryo: Fabs are moving to cryogenic etch because conventional RIE etch rate decays with depth in tiny channel holes; operating at ultra-low temperature, achieved with platform chillers and helium wafer cooling, suppresses unwanted sidewall etch while enhancing ion mobility and bombardment, directly solving the depth-dependent etch-rate problem that limits layer-count scaling. [3]
  • TEL's breakthrough (peer-presented, VLSI 2023): Demand for cryo etch tools jumped after a peer-presented performance breakthrough: Tokyo Electron Miyagi brought dielectric etch into the cryogenic range and etched a 10 micrometer-deep, high-aspect-ratio channel hole in 33 minutes for greater-than-400-layer stacks, while cutting global-warming potential by 84% versus the previous generation by substituting HF-based chemistry for high-GWP CF gases. [1]
  • Lam's platform positioning: Competing platform roadmaps are pulling demand forward: Lam Cryo 3.0 is positioned to manufacture future 3D NAND devices at 400 layers and beyond, built to be compatible with the Flex and Vantex conductor/dielectric etch platforms already running channel-hole etch in high-volume manufacturing, backed by scalable high-power confined plasma reactors and pulsed plasma for profile and selectivity control. [2]
  • 1,000-layer framing (Counterpoint analysis, Lam-hosted): Demand is being framed around a 1,000-layer horizon: Counterpoint analysis presented at a Lam-hosted event states that scaling beyond 400 layers introduces significant new challenges, positioning cryogenic etch as a prerequisite technology for the next stage of 3D NAND layer-count scaling rather than an optional upgrade.
• Key Segments Analyzed

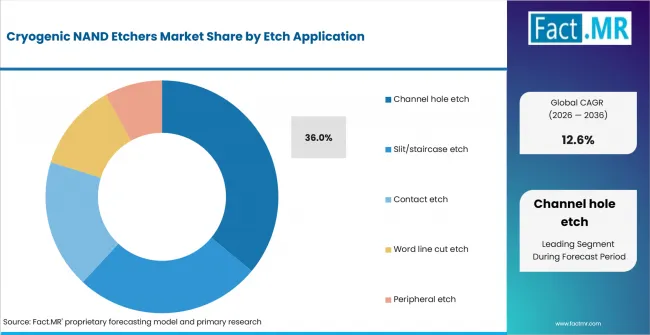

  • By Etch Application: Channel hole etch is projected to hold 36.0% share in 2026, supported by a clear process advantage: Channel-hole etch must traverse hundreds of alternating dielectric layers while maintaining profile, selectivity and bottom access. It is one of the longest and most capital-intensive steps in advanced 3D NAND and therefore creates the largest cryogenic etch workload.
  • By Operating Temperature: -20 to -40 C is projected to hold 39.5% share in 2026, supported by a clear process advantage: The -20 to -40 degrees C range captures much of the adsorption and passivation benefit of cryogenic chemistry while keeping wafer cooling, seals and chamber recovery within a manageable production window. It is a pragmatic first adoption band for high-volume tools.

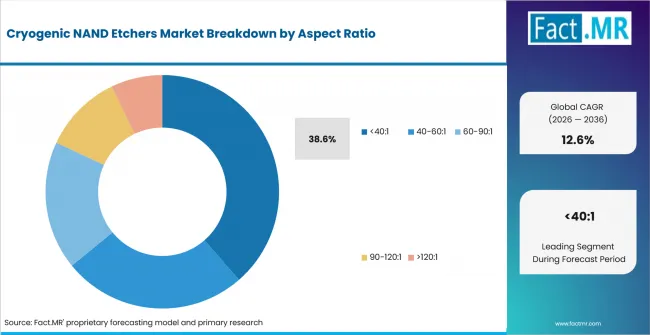

  • By Aspect Ratio: <40:1 is projected to hold 38.6% share in 2026, supported by a clear process advantage: Features below 40:1 represent the broadest qualified production base for cryogenic operation and provide a lower-risk entry point before the method is extended to more extreme structures. They still benefit from faster etch and reduced fluorocarbon use.

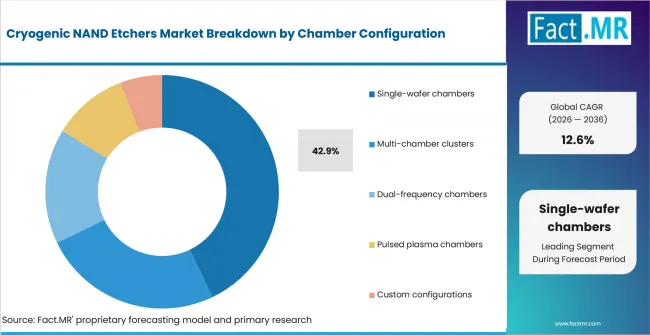

  • By Chamber Configuration: Single-wafer chambers are projected to hold 42.9% share in 2026, supported by a clear process advantage: Single-wafer chambers give direct control over wafer temperature, plasma conditions and endpoint for each substrate. That control is particularly important when the etch mechanism depends strongly on surface temperature.
  • By End User: NAND manufacturers are projected to hold 33.3% share in 2026, supported by a clear process advantage: NAND manufacturers face the immediate cost of longer channel-hole etch as layer counts rise and therefore have the strongest incentive to qualify faster, lower-emission cryogenic recipes. Their device road maps directly determine tool timing and chamber count.
• Analyst Opinion at Fact.MR
  • Shambhu Nath Jha, Sr. Consultant at Fact.MR, states, 'Buyers should evaluate the complete process sequence around etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation. Technical review should focus on repeatability, integration, defect control and production throughput rather than a single headline specification. Suppliers that connect tool performance to measurable yield and qualification results are likely to build trust faster.'
• Strategic Implications
  • Qualification must balance etch rate, profile control, selectivity, wafer temperature stability and chamber productivity.
  • Equipment suppliers should document how their systems address the challenge of etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation across production-representative wafers, panels, dies or packages.
  • Procurement teams can compare process capability, integration burden, service coverage and qualification evidence before prioritizing nominal throughput or a single accuracy claim.

South Korea is projected to record a 14.1% CAGR as high-volume memory, HBM and vertically integrated semiconductor manufacturing supports relevant capital spending; Japan is projected to record a 12.5% CAGR as semiconductor equipment, materials, inspection and memory-process expertise supports relevant capital spending; USA is projected to record a 13.9% CAGR as leading-edge logic, high-performance computing, federally supported semiconductor R&D and a large domestic equipment base supports relevant capital spending; Taiwan is projected to record a 13.2% CAGR as leading foundry production, advanced packaging and a dense OSAT and substrate supply chain supports relevant capital spending; while Singapore is projected to record a 12.8% CAGR as advanced-packaging R&D, specialty fabs and regional assembly and test operations supports relevant capital spending through 2036.

How does the Cryogenic NAND Etchers Market break down by segment?

Channel hole etch leads Etch Application with a 36.0% share, while -20 to -40 C accounts for 39.5% of Operating Temperature in 2026.

Why does Channel hole etch lead Etch Application?

Channel hole etch is projected to account for 36.0% share in 2026.

Channel-hole etch must traverse hundreds of alternating dielectric layers while maintaining profile, selectivity and bottom access. It is one of the longest and most capital-intensive steps in advanced 3D NAND and therefore creates the largest cryogenic etch workload. Slit and staircase etches are essential, but they do not combine the same feature count, depth and across-wafer uniformity burden as channel holes. Tokyo Electron Miyagi brought dielectric etch to the cryogenic range, etching a 10 µm-deep high-aspect-ratio channel hole in 33 minutes for >400-layer stacks, while cutting global-warming potential by 84% versus previous technology - largely by substituting HF-based chemistry for high-GWP CF gases, with trace PF3 acting as a catalyst promoting the HF-SiO2 reaction. [1]

Why does -20 to -40 C lead Operating Temperature?

-20 to -40 C is projected to account for 39.5% share in 2026.

The -20 to -40 degrees C range captures much of the adsorption and passivation benefit of cryogenic chemistry while keeping wafer cooling, seals and chamber recovery within a manageable production window. It is a pragmatic first adoption band for high-volume tools. Colder operation can extend profile control, but it increases thermal stabilization time and hardware complexity. In conventional RIE, etch rate decays with depth in tiny holes. Low-temperature operation suppress[es] unwanted sidewall etch while enhancing ion mobility and bombardment; ultra-low temperature is achieved with platform chillers and helium wafer cooling.

Why does <40:1 lead Aspect Ratio?

<40:1 is projected to account for 38.6% share in 2026.

Features below 40:1 represent the broadest qualified production base for cryogenic operation and provide a lower-risk entry point before the method is extended to more extreme structures. They still benefit from faster etch and reduced fluorocarbon use. The 40-60:1 class has greater technical pull, but it narrows the process window and raises endpoint and profile-control requirements. As the control levers for ARDE (aspect-ratio-dependent etch) suppression (Lam; Counterpoint).

Why do Single-wafer chambers lead Chamber Configuration?

Single-wafer chambers are projected to account for 42.9% share in 2026.

Single-wafer chambers give direct control over wafer temperature, plasma conditions and endpoint for each substrate. That control is particularly important when the etch mechanism depends strongly on surface temperature. Multi-chamber clusters improve fleet productivity, but the individual process modules still need tight matching and thermal repeatability. Z-pitch scaling (thinner ON layers), wafer stress management (backside deposition for bow compensation enabling taller stacks), and hybrid bonding of peripheral CMOS wafers to memory arrays are the co-dependent flow elements (Semiconductor Engineering; Lam). [3]

Why do NAND manufacturers lead End User?

NAND manufacturers are projected to account for 33.3% share in 2026.

NAND manufacturers face the immediate cost of longer channel-hole etch as layer counts rise and therefore have the strongest incentive to qualify faster, lower-emission cryogenic recipes. Their device road maps directly determine tool timing and chamber count. IDMs with broader portfolios may use deep etch elsewhere, but NAND specialists concentrate the dominant application. Lam Cryo 3.0 is optimized to manufacture future 3D NAND devices with 400 layers and beyond, compatible with Flex and Vantex conductor/dielectric etch platforms already used for channel-hole etch in HVM; supporting technologies include scalable high-power confined plasma reactors and pulsed plasma for profile/selectivity control. [2] Buyers therefore tend to treat NAND manufacturers as the practical choice when qualification must balance process capability, repeatability and production economics.

What is accelerating Cryogenic NAND Etchers Market adoption, and what is holding it back?

The strongest accelerator is Why cryo, while the main restraint is that maintaining uniform cryogenic temperature and chemistry across a 300 mm wafer adds chamber and endpoint-control complexity.

Drivers Impact Analysis

• Why cryo: In conventional RIE, etch rate decays with depth in tiny holes. Low-temperature operation suppress[es] unwanted sidewall etch while enhancing ion mobility and bombardment; ultra-low temperature is achieved with platform chillers and helium wafer cooling. [3]
• TEL's breakthrough (peer-presented, VLSI 2023): Tokyo Electron Miyagi brought dielectric etch to the cryogenic range, etching a 10 µm-deep high-aspect-ratio channel hole in 33 minutes for >400-layer stacks, while cutting global-warming potential by 84% versus previous technology - largely by substituting HF-based chemistry for high-GWP CF gases, with trace PF3 acting as a catalyst promoting the HF-SiO2 reaction. [1]
• Lam's platform positioning: Lam Cryo 3.0 is optimized to manufacture future 3D NAND devices with 400 layers and beyond, compatible with Flex and Vantex conductor/dielectric etch platforms already used for channel-hole etch in HVM; supporting technologies include scalable high-power confined plasma reactors and pulsed plasma for profile/selectivity control. [2]
• 1,000-layer framing (Counterpoint analysis, Lam-hosted): Scaling beyond 400 layers will introduce significant challenges such as slow etch rate and variabilities in vertical profiles, requiring sustained etch/deposition innovation; 1,000 layers would reach ~100 Gbit/mm² die density; third-generation cryo dielectric etch + polymer management are called the key enablers, with reduced environmental impact. [5]

Opportunity Impact Analysis

• Two-tier to multi-tier pressure: >400 Layers at at least 8 µm/tier depth (TEL's Kihara) sustains 2-tier stacks; deeper single-etch or 3-4 tier stacks are the fork in the roadmap - each path multiplies etch-tool demand.[4]
• Chemistry transition (CFtoHF): 84% GWP reduction (TEL) repositions the etch gas supply chain toward HF logistics and PF3 doping - an environmental-regulation-driven materials shift.
• Hybrid bonding convergence: Peripheral-CMOS-on-array via hybrid bonding changes what the etcher must deliver (CMOS wafer etch + array wafer etch separately optimized).

Restraints Impact Analysis

• Primary qualification constraint: Maintaining uniform cryogenic temperature and chemistry across a 300 mm wafer adds chamber and endpoint-control complexity.
• Throughput versus sensitivity: Scaling beyond 400 layers will introduce significant challenges such as slow etch rate and variabilities in vertical profiles, requiring sustained etch/deposition innovation; 1,000 layers would reach ~100 Gbit/mm² die density; third-generation cryo dielectric etch + polymer management are called the key enablers, with reduced environmental impact. [5]
• Thermal and mechanical distortion: Z-pitch scaling (thinner ON layers), wafer stress management (backside deposition for bow compensation enabling taller stacks), and hybrid bonding of peripheral CMOS wafers to memory arrays are the co-dependent flow elements (Semiconductor Engineering; Lam). [3]

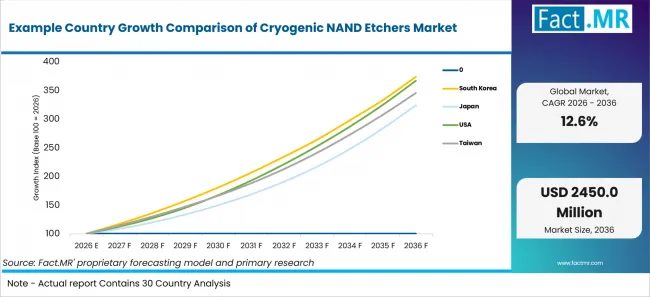

Which countries are scaling Cryogenic NAND Etchers Market fastest?

Japan is projected to record a 12.5% CAGR for Cryogenic NAND Etchers Market as semiconductor equipment, materials, inspection and memory-process expertise.

• Countries differ less by the headline CAGR than by the type of semiconductor work creating demand for the Cryogenic NAND Etchers Market.
• South Korea follows a pathway shaped by high-volume memory, HBM and vertically integrated semiconductor manufacturing. USA takes a different path through leading-edge logic, high-performance computing, federally supported semiconductor R&D and a large domestic equipment base.
• Taiwan remains aligned through distinct combinations of device production, equipment development and advanced packaging investment.
• Singapore develops through advanced-packaging R&D, specialty fabs and regional assembly and test operations, while Japan relies on semiconductor equipment, materials, inspection and memory-process expertise.
• Markets with similar CAGRs can follow different development paths because installed fabs, device mix, local equipment capability, export controls and qualification cycles differ.

The full report compares the six named country markets within the wider regional coverage of North America, Latin America, Europe, East Asia, South Asia & Oceania, and the Middle East & Africa.

What is driving South Korea's growth through 2036?

14.1% CAGR, supported by high-volume memory, HBM and vertically integrated semiconductor manufacturing.

Samsung and SK hynix use both Lam Research and Tokyo Electron systems, while local companies support solid-source gas supply chains, including PF3. This setup creates a clear qualification path for the Cryogenic NAND Etchers Market. Manufacturers are working to etch deep, narrow channel holes through hundreds of alternating dielectric layers at production scale while limiting bowing, tapering, and weak etch performance at the bottom of the structure.

What is driving USA's growth through 2036?

13.9% CAGR, supported by leading-edge logic, high-performance computing, federally supported semiconductor R&D and a large domestic equipment base.

Lam Research brings its cryogenic etching portfolio and established Flex and Vantex system base, while Micron operates major NAND fabrication facilities. This environment creates a clear qualification path for the Cryogenic NAND Etchers Market. Manufacturers are working to etch deep, narrow channel holes through hundreds of alternating dielectric layers at production scale while limiting bowing and weak etch performance at the bottom of the structure.

What is driving Taiwan's growth through 2036?

13.2% CAGR, supported by leading foundry production, advanced packaging and a dense OSAT and substrate supply chain.

Taiwan combines leading foundry production, advanced packaging and a dense OSAT and substrate supply chain with a 9.8% share of 2026 demand across the six profiled countries. As the control levers for ARDE (aspect-ratio-dependent etch) suppression (Lam; Counterpoint). The commercial link is the need to solve the problem of etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation as capacity and process complexity increase.

What is driving Singapore's growth through 2036?

12.8% CAGR, supported by advanced-packaging R&D, specialty fabs and regional assembly and test operations.

Singapore combines advanced-packaging R&D, specialty fabs and regional assembly and test operations with a 7.8% share of 2026 demand across the six profiled countries. In conventional RIE, etch rate decays with depth in tiny holes. [3]

What is driving Japan's growth through 2036?

12.5% CAGR, supported by semiconductor equipment, materials, inspection and memory-process expertise.

TEL (cryo channel-hole breakthrough); Kioxia fabs - TEL's home demand. This environment creates a clear qualification pathway for the Cryogenic NAND Etchers Market because buyers must solve the problem of etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation at production scale.

Who leads the Cryogenic NAND Etchers Market?

Lam Research and Tokyo Electron lead the competitive landscape, followed by Applied Materials and Hitachi High-Tech as the next tier of challengers.

Lam Research participates through etch, deposition, clean and advanced memory process integration, with relevance determined by its ability to address the challenge of etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation. Tokyo Electron participates through etch, clean, deposition and wafer-bonding process equipment. 10 Μm/33 min cryo process, −84% GWP; VLSI 2023 publication. Applied Materials participates through deposition, etch, materials engineering and integrated process modules, with relevance determined by its ability to address the challenge of etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation. Hitachi High-Tech participates through CD-SEM and semiconductor inspection, with relevance determined by its ability to address the challenge of etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation.

Competition is expected to center on repeatable process performance, integration with adjacent modules, installed-base service and documented capability to address the challenge of etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation. Buyers are likely to compare accuracy, defect prevention, throughput, recipe stability and the completeness of the delivered process cell.

Which companies are the key providers?

Key companies include Lam Research; Tokyo Electron; Applied Materials; Hitachi High-Tech.

• Lam Research
• Tokyo Electron
• Applied Materials
• Hitachi High-Tech

Bibliography

• [1] Tokyo Electron. (n.d.). Memory Channel Hole Etch Technology for 3D NAND with an 84% Reduction of Global Warming Potential.
• [2] Lam Research. (n.d.). Cryogenic Etching.
• [3] Semiconductor Engineering. (n.d.). Cryogenic Etch A Key Enabler Of 3D Nand.
• [4] Kihara, Y., Tomura, M., Sakamoto, W., Honda, M., & Kojima, M. (2023). Beyond 10 μm depth ultra-high speed etch process with 84% lower carbon footprint for memory channel hole of 3D NAND flash over 400 layers. IEEE Symposium on VLSI Technology and Circuits.
• [5] Filecache. (n.d.). Counterpoint Research Paper Scaling To 1000 Layer 3D Nand In The Ai Era.

This Report Addresses

• The report provides strategic intelligence on Cryogenic NAND Etchers Market across Etch Application and Operating Temperature choices that shape purchasing decisions.
• Segment analysis covers Channel hole etch as the share leader within the 2026 market structure.
• Regional outlook evaluates South Korea and Japan alongside USA and Taiwan, while Singapore completes the growth comparison.
• Competitive analysis profiles Lam Research and Tokyo Electron alongside Applied Materials and Hitachi High-Tech, followed by additional active providers.
• Use-case assessment covers the categories and applications that shape demand in the Cryogenic NAND Etchers Market across the forecast period.

What does the Cryogenic NAND Etchers Market cover?

The market covers equipment and process systems configured to address the challenge of etching deep, narrow channel holes through hundreds of alternating dielectric layers without bow, taper or bottom starvation.

Cryogenic NAND etchers are dielectric plasma etch systems that run wafer temperatures well below 0 °C to cut the oxide/nitride (ONON) memory channel holes and staircase structures of 3D NAND. The segment is defined by layer counts (200 to 400 to 1,000-layer roadmaps), per-tier depth (at least 8 µm/tier for 400+ layers), and the twin goals of profile fidelity and lower greenhouse-gas footprint.

Commercial value arises from the complete configured system, including process control, handling, software and integrated modules required for repeatable operation. Finished semiconductor devices, package value and unrelated parent-market equipment are excluded.

What is included in the scope?

The scope includes systems used by NAND manufacturers and the other end-user groups listed in the segmentation.

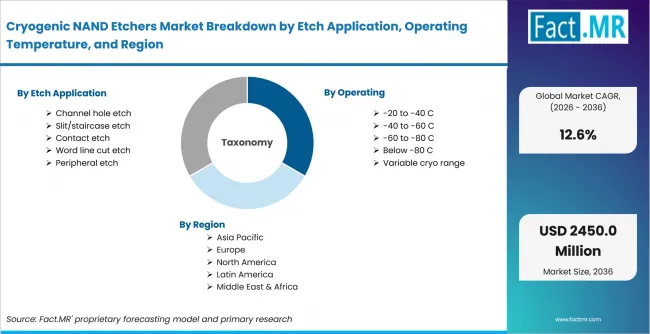

The market is segmented by Etch Application, including Channel hole etch, Slit/staircase etch, Contact etch, Word line cut etch, Peripheral etch; Operating Temperature, including -20 to -40 C, -40 to -60 C, -60 to -80 C, Below -80 C, Variable cryo range; Aspect Ratio, including <40:1, 40-60:1, 60-90:1, 90-120:1, >120:1; Chamber Configuration, including Single-wafer chambers, Multi-chamber clusters, Dual-frequency chambers, Pulsed plasma chambers, Custom configurations; End User, including NAND manufacturers, IDMs, Foundries, DRAM manufacturers, R&D institutes.

Integrated handling, metrology, cleaning, activation, process-control or support modules are included when delivered as part of the configured market system.

What is excluded from the scope?

The scope excludes unrelated semiconductor equipment, standalone materials and components sold independently of the configured system.

It also excludes facility construction, cleanroom infrastructure, the value of processed wafers or packages, and adjacent process steps that are not part of the defined equipment category.

How Was the Analysis Built?

Fact.MR is of the opinion that this assessment combines structured market analysis with a review of public information and industry evidence relevant to the market.

• Market Assessment: The analysis considers demand patterns, supply conditions, segment mix, country activity, company participation, and adoption trends.
• Evidence Review: Public company disclosures, government and regulatory publications, trade information, technical literature, and industry records inform the assessment.
• Validation and Updates: Findings are cross-checked against available market indicators and reviewed when material market developments emerge.
