Backside Power Metrology Market

What is the Backside Power Metrology Market forecast to be worth by 2036?

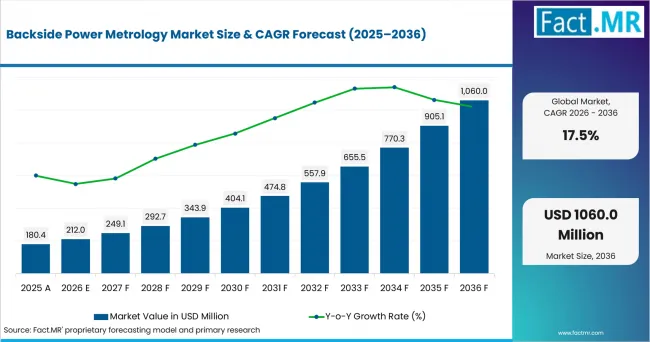

USD 212.0 million in 2026 to USD 1,060.0 million by 2036, at a 17.5% CAGR.

• The Backside Power Metrology Market crossed a valuation of USD 180.4 million in 2025, supported by demand from Foundries serving Thinning uniformity workflows that require measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers.
• Demand is projected to increase from USD 212.0 million in 2026 to USD 1,060.0 million by 2036.
• The market is forecast to record a 17.5% CAGR from 2026 to 2036 as the alignment spec that defines the market, extreme thinning metrology and integration challenges catalog (imec) remain central purchase reasons.

What are the defining numbers behind Backside Power Metrology Market growth?

USD 848.0 million absolute opportunity is expected by 2036.

• Demand Drivers in the Market
  • The alignment spec that defines the market: Demand for backside overlay metrology is set by an extremely tight alignment spec: nano-TSVs need to land within about 10 nm of the frontside, per Cadence IEDM coverage, and imec's demonstrated implementation lands roughly 320 nm-deep nano-TSVs on buried power rails under that same tight overlay control - a spec an order of magnitude tighter than typical packaging overlay. [2][1]
  • Extreme thinning metrology: Backside power delivery requires thinning the device wafer to under 10 micrometers after bonding a second carrier wafer to it, creating direct demand for thickness and uniformity metrology precise enough to keep that thinning step within spec across the full wafer. [2]
  • Integration challenges catalog (imec): Imec's own integration-challenges catalog for BSPDN names four separate metrology needs - extreme substrate thinning, micro/nano-TSV processing, backside-to-frontside alignment, and backside processing impact on active FEOL devices - and imec has already verified via TEM and electrical test that FinFET performance is not degraded by backside processing, giving buyers a validated reference to qualify their own metrology against. [3][4]
  • Material metrology: Buried power rail material choice is creating a new metrology requirement of its own: tungsten offers lower contamination risk and meets a 50 ohm/micrometer target resistance, while barrierless ruthenium offers lower via resistance, and evaluating either candidate at FEOL buried structures requires new probe and test structures for rail and contact resistance. [2]
• Key Segments Analyzed
  • By Metrology Technique: IR overlay metrology is projected to hold 30.0% share in 2026, supported by a clear process advantage: Infrared overlay metrology can reference frontside targets through a thinned silicon wafer while the device remains bonded to a carrier. It directly connects backside lithography and via placement to buried frontside structures.
  • By Measured Parameter: Thinning uniformity is projected to hold 46.4% share in 2026, supported by a clear process advantage: Thinning uniformity sets the remaining silicon thickness, the depth to buried targets and the mechanical stability of the bonded wafer. A thickness error propagates into backside focus, via etch time and overlay calibration.
  • By Process Stage: Post-thinning is projected to hold 43.4% share in 2026, supported by a clear process advantage: Post-thinning measurement is the earliest point at which the final backside silicon thickness and distortion map are available. That information can be fed forward to lithography and nano-TSV etch before more value is added.
  • By Node Application: 2 nm class is projected to hold 41.6% share in 2026, supported by a clear process advantage: The 2 nanometer class is expected to be the first broad manufacturing wave in which backside power is integrated as a platform feature. It therefore creates a concentrated need for new thickness, overlay and electrical metrology modules.
  • By End User: Foundries are projected to hold 31.9% share in 2026, supported by a clear process advantage: Foundries must qualify backside power across multiple customer designs and maintain traceability between frontside and backside process data. Their metrology architecture therefore needs high sampling, route control and cross-tool matching.
• Analyst Opinion at Fact.MR
  • Shambhu Nath Jha, Sr. Consultant at Fact.MR, states, 'Buyers should evaluate the complete process sequence around measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers. Technical review should focus on repeatability, integration, defect control and production throughput rather than a single headline specification. Suppliers that connect tool performance to measurable yield and qualification results are likely to build trust faster.'
• Strategic Implications
  • Metrology should be selected as an integrated route-control system with feed-forward thickness and distortion maps, not as isolated inspection stations.
  • Equipment suppliers should document how their systems address the challenge of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers across production-representative wafers, panels, dies or packages.
  • Procurement teams can compare process capability, integration burden, service coverage and qualification evidence before prioritizing nominal throughput or a single accuracy claim.

Taiwan is projected to record a 18.9% CAGR as leading foundry production, advanced packaging and a dense OSAT and substrate supply chain supports relevant capital spending; USA is projected to record a 19.3% CAGR as leading-edge logic, high-performance computing, federally supported semiconductor R&D and a large domestic equipment base supports relevant capital spending; South Korea is projected to record a 18.3% CAGR as high-volume memory, HBM and vertically integrated semiconductor manufacturing supports relevant capital spending; Israel is projected to record a 16.9% CAGR as advanced logic manufacturing and process-control R&D supports relevant capital spending; Japan is projected to record a 18.1% CAGR as semiconductor equipment, materials, inspection and memory-process expertise supports relevant capital spending; while Ireland is projected to record a 16.4% CAGR as European logic manufacturing and process-development investment supports relevant capital spending through 2036.

How does the Backside Power Metrology Market break down by segment?

IR overlay metrology leads Metrology Technique with a 30.0% share, while Thinning uniformity accounts for 46.4% of Measured Parameter in 2026.

Why does IR overlay metrology lead Metrology Technique?

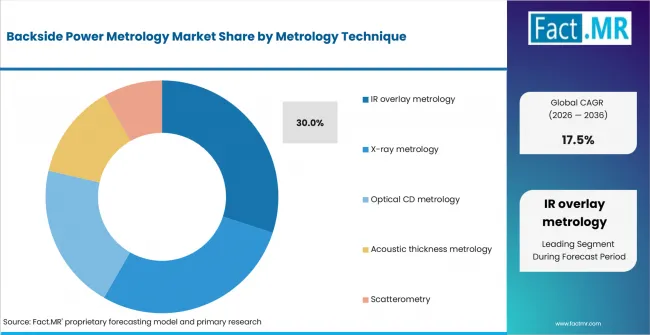

IR overlay metrology is projected to account for 30.0% share in 2026.

Infrared overlay metrology can reference frontside targets through a thinned silicon wafer while the device remains bonded to a carrier. It directly connects backside lithography and via placement to buried frontside structures. X-ray metrology can see buried features with different material contrast, but it is generally slower and less suited to dense high-frequency overlay sampling. BSPDN brings extreme substrate thinning, micro- or nano-TSV processing, backside to frontside alignment, and backside processing impact on the active front-end-of-line devices - each a metrology requirement: thickness, via profile, overlay, and device-drift monitoring (imec verified FinFET performance was NOT degraded by backside processing, proven by TEM + electrical test). [3][4] Buyers therefore tend to treat IR overlay metrology as the practical choice when qualification must balance process capability, repeatability and production economics.

Why does Thinning uniformity lead Measured Parameter?

Thinning uniformity is projected to account for 46.4% share in 2026.

Thinning uniformity sets the remaining silicon thickness, the depth to buried targets and the mechanical stability of the bonded wafer. A thickness error propagates into backside focus, via etch time and overlay calibration. Backside overlay is the next critical control, but it depends on a stable, well-characterized thinned substrate. Backside power requires extreme thinning of the silicon wafer to less than 10µm. A second wafer has to be bonded to the real wafer.[2] Buyers therefore tend to treat thinning uniformity as the practical choice when qualification must balance process capability, repeatability and production economics.

Why does Post-thinning lead Process Stage?

Post-thinning is projected to account for 43.4% share in 2026.

Why does 2 nm class lead Node Application?

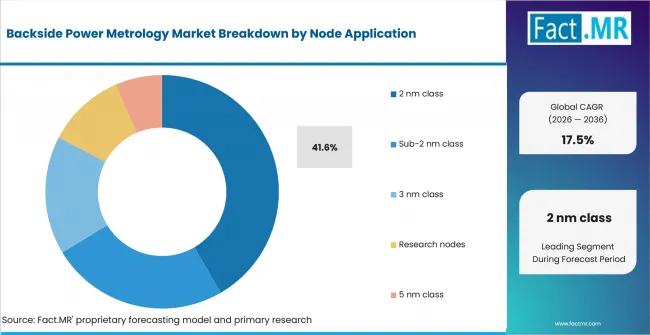

2 nm class is projected to account for 41.6% share in 2026.

The 2 nanometer class is expected to be the first broad manufacturing wave in which backside power is integrated as a platform feature. It therefore creates a concentrated need for new thickness, overlay and electrical metrology modules. Sub-2 nanometer nodes will intensify the requirement, but they remain a later and more selective capacity build in the market estimates window. The nano-TSVs (nTSVs) need to be aligned within about 10nm to the frontside (Cadence IEDM coverage). Imec's demonstrated implementation: ~320 nm-deep nTSVs landing on buried power rails with tight overlay control.[2][1] Buyers therefore tend to treat 2 nm class as the practical choice when qualification must balance process capability, repeatability and production economics.

Why do Foundries lead End User?

Foundries are projected to account for 31.9% share in 2026.

Foundries must qualify backside power across multiple customer designs and maintain traceability between frontside and backside process data. Their metrology architecture therefore needs high sampling, route control and cross-tool matching. IDMs can optimize around one internal product family, while foundries need a more general platform and a larger installed measurement fleet. BPR candidates: tungsten (lower contamination risk; meets 50 Ω/µm target resistance) vs barrierless ruthenium (lower via resistance) - rail resistance and contact resistance measurements at FEOL buried structures require new probe/test structures. [2] Buyers therefore tend to treat foundries as the practical choice when qualification must balance process capability, repeatability and production economics.

What is accelerating Backside Power Metrology Market adoption, and what is holding it back?

The strongest accelerator is the alignment spec that defines the market, while the main restraint is that buried targets, bonded carriers and extreme thinning restrict optical access and require cross-tool correlation.

Drivers Impact Analysis

• The alignment spec that defines the market: The nano-TSVs (nTSVs) need to be aligned within about 10nm to the frontside (Cadence IEDM coverage). Imec's demonstrated implementation: ~320 nm-deep nTSVs landing on buried power rails with tight overlay control.[2][1]
• Extreme thinning metrology: Backside power requires extreme thinning of the silicon wafer to less than 10µm. A second wafer has to be bonded to the real wafer. [2]
• Integration challenges catalog (imec): BSPDN brings extreme substrate thinning, micro- or nano-TSV processing, backside to frontside alignment, and backside processing impact on the active front-end-of-line devices - each a metrology requirement: thickness, via profile, overlay, and device-drift monitoring (imec verified FinFET performance was NOT degraded by backside processing, proven by TEM + electrical test). [3][4]
• Material metrology: BPR candidates: tungsten (lower contamination risk; meets 50 Ω/µm target resistance) vs barrierless ruthenium (lower via resistance) - rail resistance and contact resistance measurements at FEOL buried structures require new probe/test structures. [2]

Opportunity Impact Analysis

• Intel PowerVia in production: (First commercial BSPDN, RibbonFET generation) - takes backside power metrology from R&D to HVM specs; imec's nTSV-on-BPR is the research benchmark.
• Bonded-stack thickness control: Carrier-bond + grind/CMP to <10 µm with void-free bond interface - metrology merges wafer-bonding inspection (C-SAM/IR) with precision thickness mapping.

Restraints Impact Analysis

• Primary qualification constraint: Buried targets, bonded carriers and extreme thinning restrict optical access and require cross-tool correlation. [3][4]
• Alignment and registration risk: BSPDN brings extreme substrate thinning, micro- or nano-TSV processing, backside to frontside alignment, and backside processing impact on the active front-end-of-line devices - each a metrology requirement: thickness, via profile, overlay, and device-drift monitoring (imec verified FinFET performance was NOT degraded by backside processing, proven by TEM + electrical test). [3][4]
• Contamination and defect risk: BPR candidates: tungsten (lower contamination risk; meets 50 Ω/µm target resistance) vs barrierless ruthenium (lower via resistance) - rail resistance and contact resistance measurements at FEOL buried structures require new probe/test structures. [2]

Which countries are scaling Backside Power Metrology Market fastest?

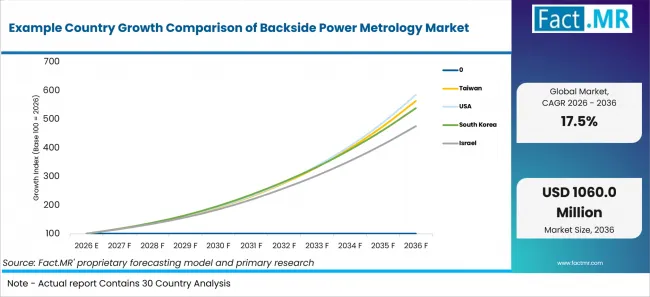

In USA, Backside Power Metrology Market is projected to advance at 19.3% CAGR, supported by leading-edge logic, high-performance computing, federally supported semiconductor R&D and a large domestic equipment base.

• Countries differ less by the headline CAGR than by the type of semiconductor work creating demand for the Backside Power Metrology Market.
• USA follows a pathway shaped by leading-edge logic, high-performance computing, federally supported semiconductor R&D and a large domestic equipment base. Taiwan takes a different path through leading foundry production, advanced packaging and a dense OSAT and substrate supply chain.
• South Korea and Japan remain aligned through distinct combinations of device production, equipment development and advanced packaging investment.
• Israel develops through advanced logic manufacturing and process-control R&D, while Ireland relies on European logic manufacturing and process-development investment.
• Markets with similar CAGRs can follow different development paths because installed fabs, device mix, local equipment capability, export controls and qualification cycles differ.

The full report compares the six named country markets within the wider regional coverage of North America, Latin America, Europe, East Asia, South Asia & Oceania, and the Middle East & Africa.

What is driving USA's growth through 2036?

19.3% CAGR, supported by leading-edge logic, high-performance computing, federally supported semiconductor R&D and a large domestic equipment base.

Intel (PowerVia first); KLA/Onto metrology development; Cadence ecosystem analysis. This environment creates a clear qualification pathway for the Backside Power Metrology Market because buyers must solve the problem of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers at production scale.

What is driving Taiwan's growth through 2036?

18.9% CAGR, supported by leading foundry production, advanced packaging and a dense OSAT and substrate supply chain.

TSMC (A16 Super Power Rail) and Samsung BSPDN roadmaps - metrology co-development with vendors. This environment creates a clear qualification pathway for the Backside Power Metrology Market because buyers must solve the problem of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers at production scale.

What is driving South Korea's growth through 2036?

18.3% CAGR, supported by high-volume memory, HBM and vertically integrated semiconductor manufacturing.

What is driving Japan's growth through 2036?

18.1% CAGR, supported by semiconductor equipment, materials, inspection and memory-process expertise.

TEL bonding/thinning tools; Hitachi CD-SEM metrology. This environment creates a clear qualification pathway for the Backside Power Metrology Market because buyers must solve the problem of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers at production scale.

What is driving Israel's growth through 2036?

16.9% CAGR, supported by advanced logic manufacturing and process-control R&D.

Israel combines advanced logic manufacturing and process-control R&D with a 10.2% share of 2026 demand across the six profiled countries. The nano-TSVs (nTSVs) need to be aligned within about 10nm to the frontside (Cadence IEDM coverage). [2][1] The commercial link is the need to solve the problem of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers as capacity and process complexity increase.

What is driving Ireland's growth through 2036?

16.4% CAGR, supported by European logic manufacturing and process-development investment.

Ireland combines European logic manufacturing and process-development investment with a 8.6% share of 2026 demand across the six profiled countries. Backside power requires extreme thinning of the silicon wafer to less than 10µm. [2] The commercial link is the need to solve the problem of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers as capacity and process complexity increase.

Who leads the Backside Power Metrology Market?

KLA and Onto Innovation lead the competitive landscape, followed by Applied Materials and Bruker as the next tier of challengers.

KLA participates through process control, optical and electron-beam inspection and metrology. Overlay, e-beam, and X-ray metrology adapted to bonded backside stacks. Onto Innovation participates through advanced packaging inspection, overlay and process-control metrology, with relevance determined by its ability to address the challenge of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers. Applied Materials participates through deposition, etch, materials engineering and integrated process modules, with relevance determined by its ability to address the challenge of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers. Bruker participates through X-ray, acoustic and materials metrology, with relevance determined by its ability to address the challenge of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers.

Zeiss holds a more specialized role through X-ray microscopy, electron imaging and semiconductor metrology, particularly where custom integration and service coverage affect qualification. Nova holds a more specialized role through optical and materials metrology, particularly where custom integration and service coverage affect qualification.

Competition is expected to center on repeatable process performance, integration with adjacent modules, installed-base service and documented capability to address the challenge of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers. Buyers are likely to compare accuracy, defect prevention, throughput, recipe stability and the completeness of the delivered process cell.

Which companies are the key providers?

Key companies include KLA; Onto Innovation; Applied Materials; Bruker; Zeiss; Nova.

• KLA
• Onto Innovation
• Applied Materials
• Bruker
• Zeiss
• Nova

Bibliography

• [1] imec. (n.d.). Backside Power Delivery with Buried Power Rails and Backside Routing.
• [2] Cadence. (n.d.). Backside Power Delivery.
• [3] imec. (n.d.). Backside Power Delivery Options Dtco Study.
• [4] imec. (n.d.). How Power Chips Backside.

This Report Addresses

• The report provides strategic intelligence on Backside Power Metrology Market across Metrology Technique and Measured Parameter choices that shape purchasing decisions.
• Segment analysis covers IR overlay metrology as the share leader within the 2026 market structure.
• Regional outlook evaluates Taiwan and USA alongside South Korea and Israel, while Japan and Ireland complete the growth comparison.
• Competitive analysis profiles KLA and Onto Innovation alongside Applied Materials and Bruker, followed by additional active providers.
• Use-case assessment covers the categories and applications that shape demand in the Backside Power Metrology Market across the forecast period.

What does the Backside Power Metrology Market cover?

The market covers equipment and process systems configured to address the challenge of measuring sub-10 µm silicon thickness, backside-to-frontside overlay, nano-TSV landing and buried-rail electrical performance on bonded wafers.

Backside power metrology covers measurement systems for backside power delivery networks (BSPDN): backside-to-frontside overlay (nTSV-to-BPR landing), extreme-thinned silicon thickness/uniformity, buried power rail CD/profile/resistance, and electrical verification of backside interconnects - across wafer-bonded carrier stacks where the device layer is buried under handling silicon.

Commercial value arises from the complete configured system, including process control, handling, software and integrated modules required for repeatable operation. Finished semiconductor devices, package value and unrelated parent-market equipment are excluded.

What is included in the scope?

The scope includes systems used by foundries and the other end-user groups listed in the segmentation.

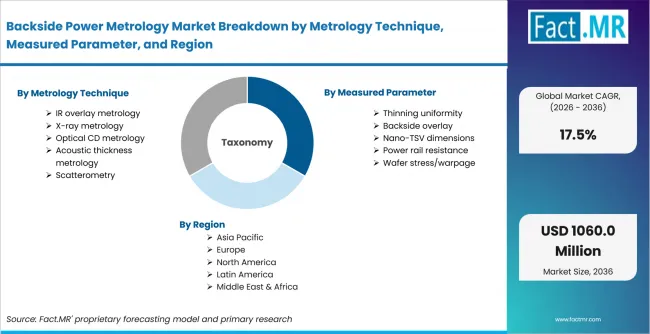

The market is segmented by Metrology Technique, including IR overlay metrology, X-ray metrology, Optical CD metrology, Acoustic thickness metrology, Scatterometry; Measured Parameter, including Thinning uniformity, Backside overlay, Nano-TSV dimensions, Power rail resistance, Wafer stress/warpage; Process Stage, including Post-thinning, Post-backside via, Post-metallization, Pre-bond alignment, Final integration audit; Node Application, including 2 nm class, Sub-2 nm class, 3 nm class, Research nodes, 5 nm class; End User, including Foundries, IDMs, Research consortia, Memory manufacturers, Equipment R&D.
